A Guide to Common Applications of Elastomeric Roof Coatings

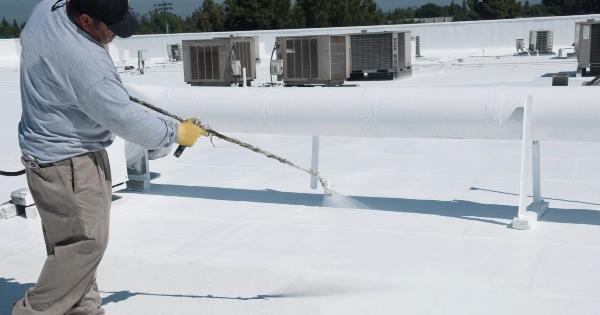

Polyglass Spraying
February 2, 2023 at 9:00 a.m.

By Polyglass.

Stop leaks, increase energy efficiency and extend a roof’s lifespan with an extra layer of elastomeric protection.

Applying an elastomeric roof coating with the proper methods and tools is necessary for its overall effectiveness. If applied unevenly of inaccurately, the roof system could face costly problems that reduce its lifespan, waterproofing protection and energy efficiency.

This article will look at the benefits of the most-used applications of elastomeric roof coatings and will provide you with step-by-step tips to help you properly install elastomeric coatings for the greatest outcomes.

What is an elastomeric roof coating?

An elastomeric roof coating is a liquid-applied coating (typically made from either silicone or acrylic) that cures into a durable, highly elastic membrane when it dries. The elastic quality makes it easy to apply to most roof surfaces and highly adaptable to a wide range of weather conditions. Elastomeric roof coatings can be applied over new roofs to provide an extra layer of weatherproofing, or they can be applied to older roofs to seal leaks, reinforce the roof’s integrity and extend lifecycle expectancy.

What surfaces can elastomeric coatings be installed over?

Elastomeric roof coatings can be applied successfully over many different roofing materials, including (but not limited to) the following:

  • Built-up roofing

  • Asphalt

  • Metal

  • Fiberglass

  • PVC

  • APP or SBS cap sheet

  • Aged EPDM or TPO membranes

  • Concrete

  • Exterior-grade plywood

  • Sprayed polyurethane foam

  • Existing elastomeric coatings

Advantages of elastomeric roof coatings

  • Increased energy efficiency and UV protection. Elastomeric roof coatings offer a “cool roof” effect that lowers energy bills in the summer months.

  • Adds additional waterproofing and weathering protection. Elastomeric roof coatings provide a robust shield against rain, snow, ice, etc. They also provide additional reinforcement for roofs that may be subject to high winds.

  • Easy to repair and maintain once installed. Vulnerabilities can be easily resealed by applying more coating directly to the areas of damage.

  • Restores roof viability and extends roof life expectancy. A well-applied elastomeric coating can last 10-20 years.

How to apply elastomeric coatings

For proper application of elastomeric roof coatings, follow our steps below for Liquid Applied Roofing (LAR):

Step 1: Gather appropriate tools and equipment

The right tools and equipment will make application easier and faster.

Aside from personal safety equipment like goggles, hard hats, work boots, gloves and safety harnesses, you’ll want to gather solid plastic core roller covers, all-purpose brushes, scissors, mallets, push brooms, power drill with mixer and sprayer equipment for your application process.

Step 2: Clean and pressure wash the roof

Preparation is key to a successful coating application. Before applying the coating, the roof must be clean, dry and structurally sound.

Remove all debris and dirt from the roof. For heavily soiled areas, loosen the dirt with a broom or brush. Clean the entire surface using a power washer capable of 2500 to 3500 p.s.i. with a 30-degree cleaning tip. Keep the tip about 18 inches from the roof surface and spray with a gentle sweeping motion. Use a push broom to push standing water toward the drains.

Allow the surface to dry completely before moving to the next step.

Step 3: Repair and reinforce the roof

Any areas of damage should be repaired before applying the elastomeric roof coating.

Use Polyglass PolyBrite polyester fabric and mastic to reinforce these repaired areas, as well as around any roof penetrations, curbs and rooftop equipment.

To address inside corner details:

Apply a generous coat of Polyglass base coat to the inside corner, then embed reinforcing polyester fabric into the corner.

Once the fabric is smoothed into the corner and adhered to the base coat, apply more base coat to seal overlapping pieces of fabric, then cover the fabric area with a saturation coat.

To address outside corner details:

Apply a generous coat of Polyglass base coat to the outside corner, then embed reinforcing polyester fabric over the corner to adhere it, then apply a saturation coat. Then connect the details with an additional 12-inch piece of polyester fabric, applied in the same manner.

To address pipe penetration details:

For pipes, stands, drains and scuppers that penetrate the roof surface, cut the polyester fabric for the finger flashing so the fabric can cover and overlap the pipe by at least three inches.

For the target flashing, cut an opening so the fabric can slide down over the drainpipe. Apply a base coat around the penetration area and work outward horizontally from the penetration point as well as up the pipe. Apply the finger flashing around the pipe, then apply additional base coating to secure it. Fit the target piece over the pipe and apply a saturation coat.

If roof reinforcement is necessary:

Use Polyglass base coat and 40-inch polyester fabric rolls to reinforce the roof area.

Apply the base coat using a roller, carefully unroll the fabric over the base coat to adhere it, then seal it with another layer of base coat. Overlap fabric rolls by at least three inches. When dry, the roof is ready for a top coat.

To address metal seam flashing details:

For both vertical and horizontal metal seams, apply two coats of Polyglass PolyBrite 77 premium SCBS cement along the seams with a minimum of two inches on each side.

For complete encapsulation, apply an additional dab of cement over the screw heads.

Step 4: Conduct a field adhesion test

Next, you’ll want to conduct a field adhesion test on the roof to determine which primer (if any) you need to apply.

For the test, you’ll attach a test piece of polyester reinforcing fabric by applying the primer, laying the fabric and applying another coat of primer over it, leaving two inches of fabric free. Allow 24 hours to dry, then pull the fabric using the uncoated portion.

If the coating comes off the substrate clean, a primer will likely be needed; if primer is left on the surface, a primer may not be necessary.

Step 5: Mix and stage roofing products

Mix all Polyglass products, including the elastomeric roof coating, thoroughly for proper application.

Use a 3/4-inch corded electric drill with power mixer attachment and mix the product from the bottom up.

Stage all products out of direct sunlight and protect them from freezing.

Step 6: Configure spray equipment and apply

To apply the coating, use airless spray equipment with a minimum capability of 3/4 gallons of volume per minute and a minimum 3300 p.s.i.

Apply the coating evenly at the specified wet film thickness while keeping the nozzle 12-18 inches from the surface.

Learn more about liquid-applied roofing

Learn more about Polyglass in their RoofersCoffeeShop® Directory or visit www.polyglass.com.

Original article source: Polyglass
